Found in National Semiconductor documentation from the 1990s, this circuit can be implemented with equivalent modern components.
| Clique na imagem para ampliar |

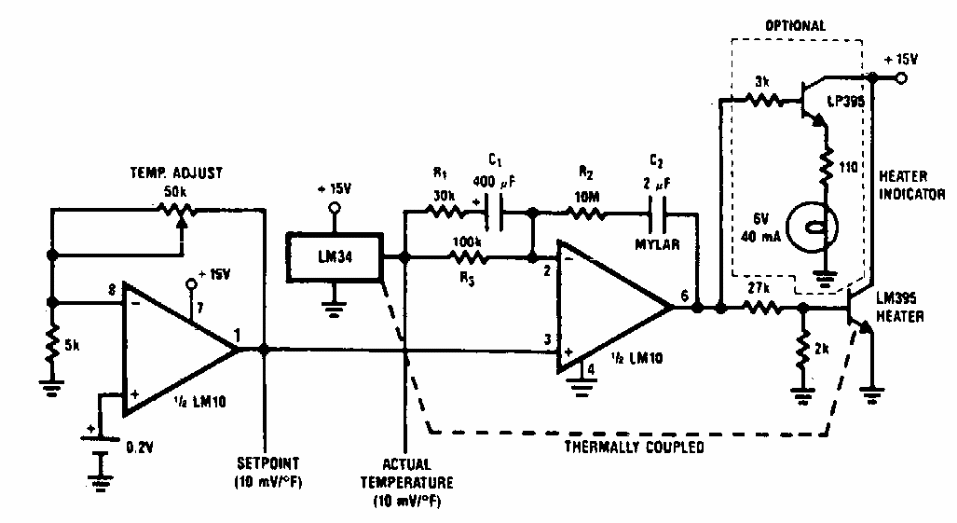

Temperature controller (CB21286E)
- Details
- Written by: Newton C. Braga
Found in National Semiconductor documentation from the 1990s, this circuit can be implemented with equivalent modern components.
