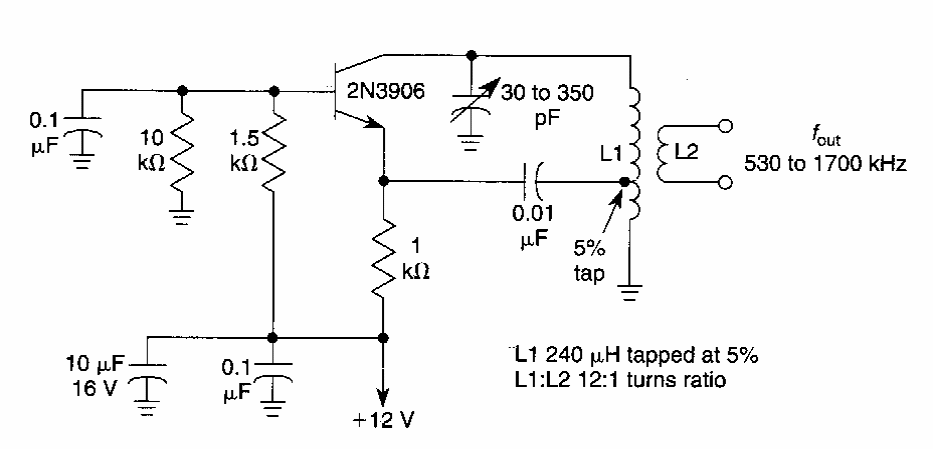

Oscillator for the medium wave range (CB21140E)

This ground-based circuit was found in 1990s American documentation. The transistor can be any general-purpose equivalent.

| Clique na imagem para ampliar |
