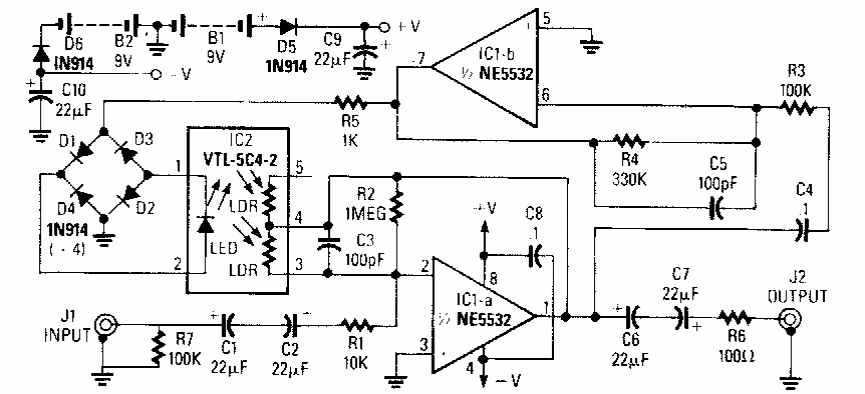

This circuit was obtained from a Radio Electronics from the 90's. The circuit limits the strength of an audio signal preventing saturation. Equivalent operational amplifiers can be tried.
| Clique na imagem para ampliar |
Audio limiter (CB21068E)
- Details
- Written by: Newton C. Braga
