Ameba Transmitter (CB21873E)

Details
Written by: Newton C. Braga

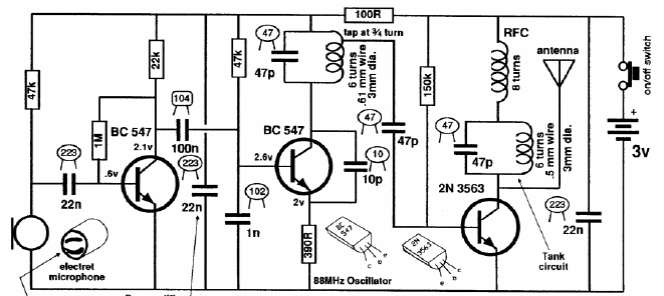

We found this small FM transmitter in an Australian publication from 1991. The 3-transistor circuit has a range on the order of 400 meters.




| Clique na imagem para ampliar |
