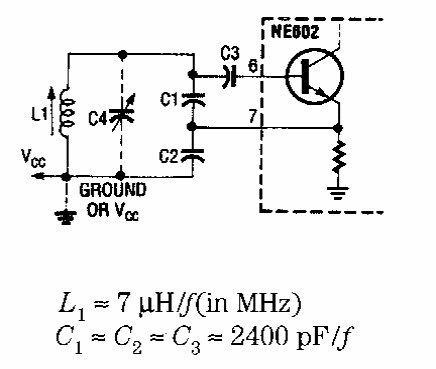

Colpitts Oscillator (CB21146E)
- Details
- Written by: Newton C. Braga
This circuit was obtained from a Radio Electronics from the 90's. It can generate signals up to a few tens of megahertz depending on the oscillating network.
