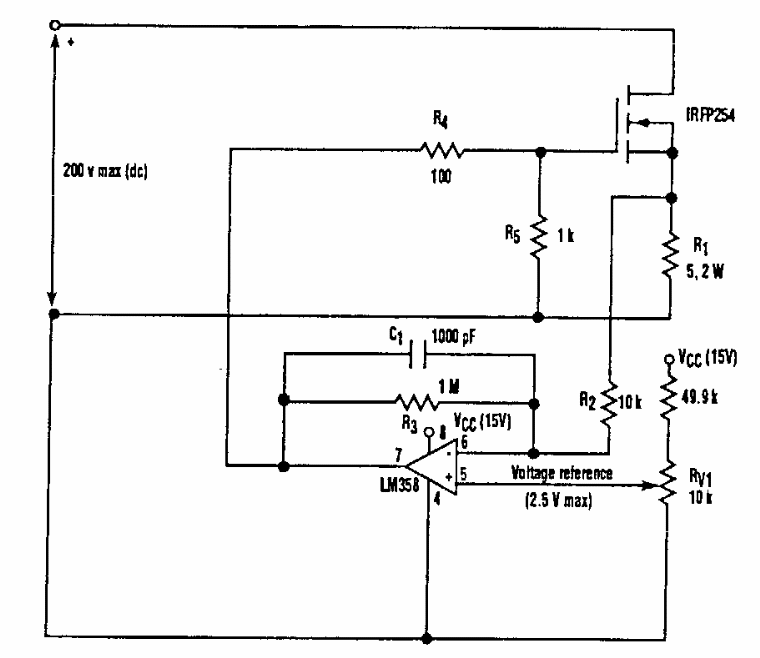

Found in an Electronic Design from the 90's, this circuit simulates a 100 W resistor. The power transistor must match the desired current in the load under test.
| Clique na imagem para ampliar |
100W load simulator (CB21050E)
- Details
- Written by: Newton C. Braga
