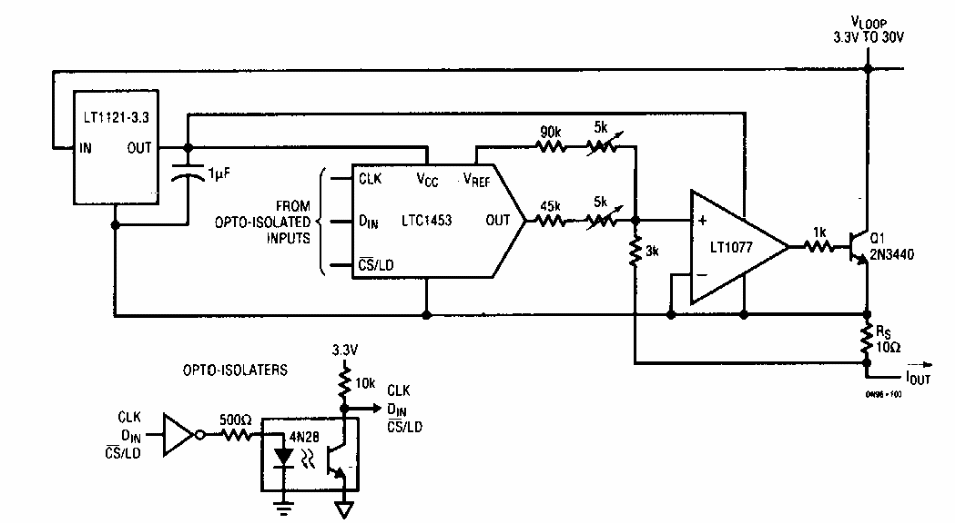

This circuit was obtained from a Linear Technology manual from the 90's. The integrated circuits are from the time and could possibly be tested as modern equivalents.
| Clique na imagem para ampliar |
4 to 20 mA interface (CB21054E)
- Details
- Written by: Newton C. Braga
