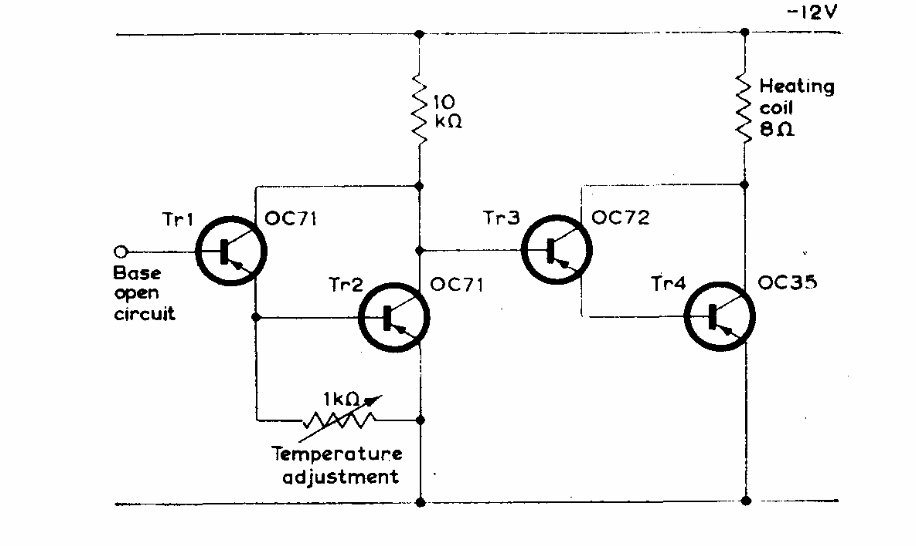

A circuit for controlling the temperature of a heating element was found in a Mullard transistor manual from 1960. Transistors are types from the time.
| Clique na imagem para ampliar |
Switch Amplifier (CB21820E)
- Details
- Written by: Newton C. Braga
