Transistor triac trigger (CB21478E)

Details
Written by: Newton C. Braga

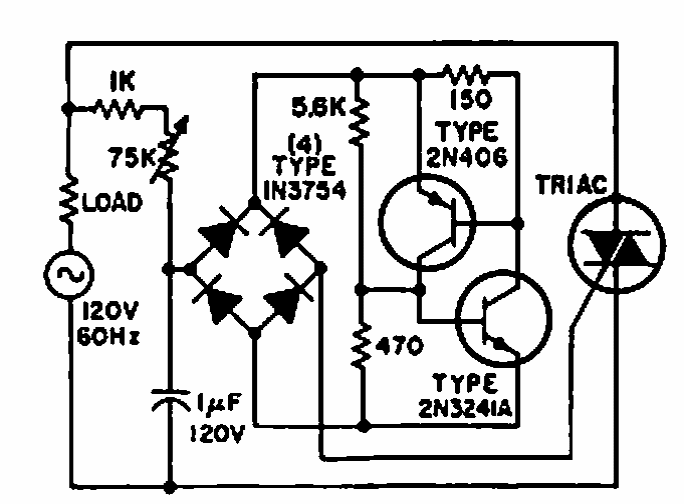

Two transistors on a regenerative switch are used to trigger a triac. This circuit is from the RCA Power Circuits manual. Transistors admit equivalents.




| Clique na imagem para ampliar |
