Low Resistance Ohmmeter (CB21359E)
- Details
- Written by: Newton C. Braga

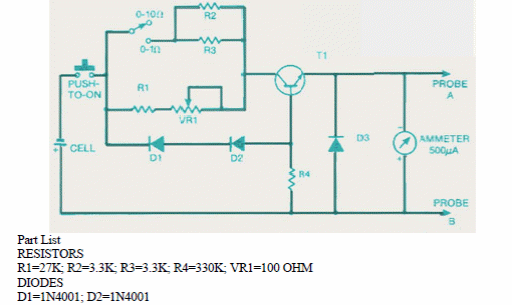

This circuit was taken from recent English documentation. The circuit uses a 500 uA microammeter as an indicator. The indication range is from 0 to 10 ohms.
