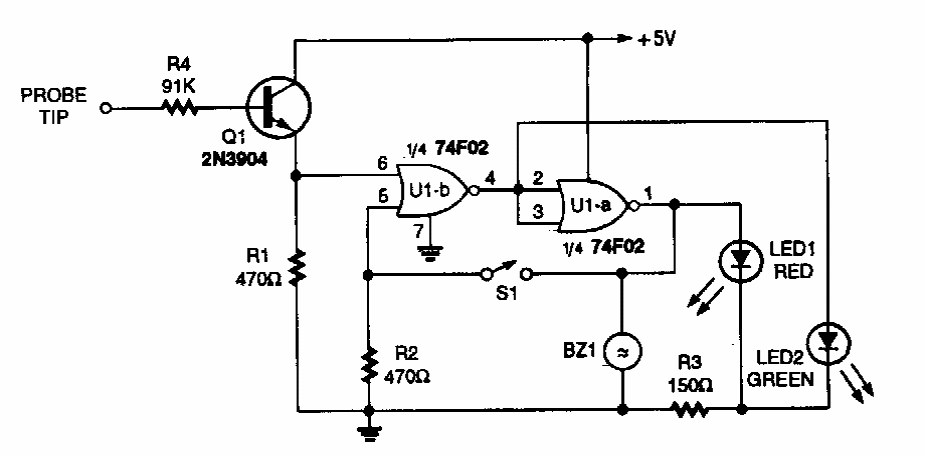

126 MHz Logic Probe (CB21195E)

This logic probe was found in a Popular Electronics from the 90s. The circuit is TTL and must be powered with 5V.
