High Current Measuring Circuit (CB21055E)
- Details
- Written by: Newton C. Braga

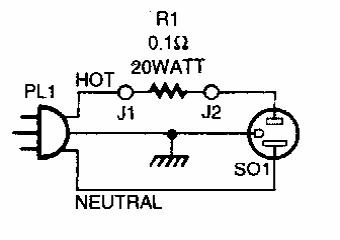

This circuit makes it possible to measure high currents based on the voltage drop across a high-power resistor. The circuit is from a Popular Electronics from the 90s.
