Continuity test for cables (CB21600E)

Details
Written by: Newton C. Braga

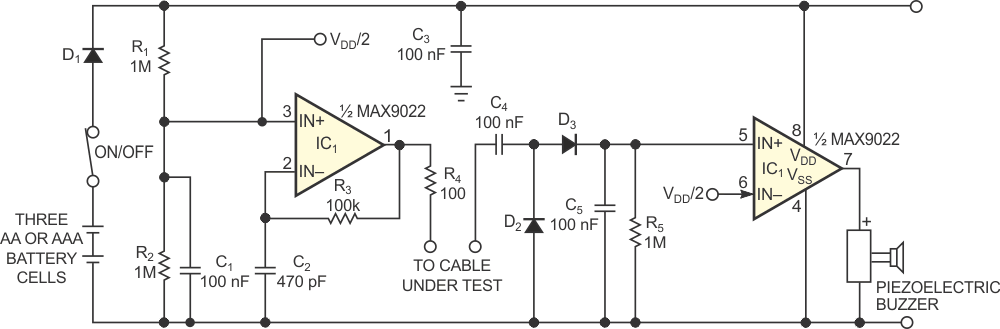

The purpose of this circuit based on Maxim's MAX9022 is to find faults in multiple cables. The circuit provides an audible signal on a buzzer being powered by 3 small or AAA batteries.




| Clique na imagem para ampliar |
