Telephone dialer (CB21268E)

Details
Written by: Newton C. Braga

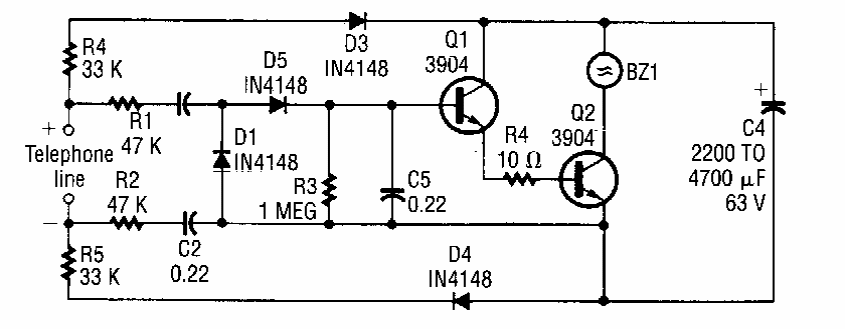

This circuit was found in Electronics Now. With it the dialing signals of a telephone are generated, reproduced in a buzzer.




| Clique na imagem para ampliar |
