Alarm with relay (CB21218E)

Details
Written by: Newton C. Braga

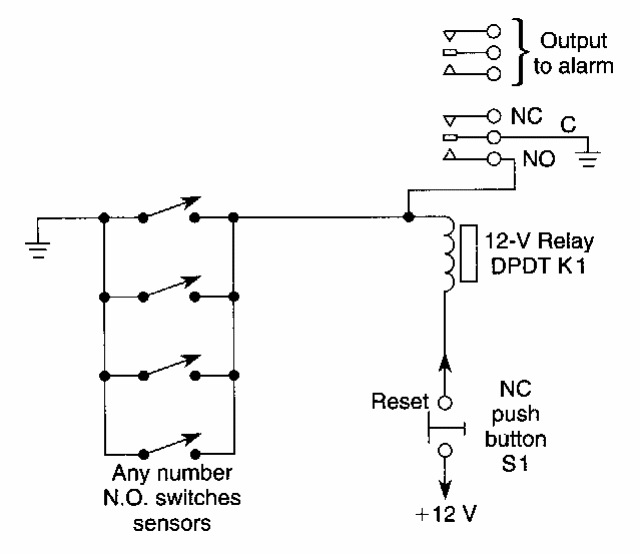

This latching alarm circuit using relays was found in American documentation. Sensors are connected in parallel.
