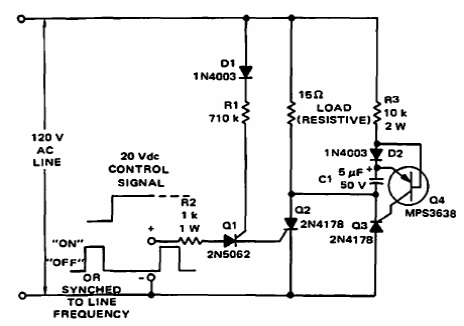

Found in a Motorola manual from the 1960s, this circuit shows how to use a transistor in a static switch with SCR. Q2 and Q3 must be according to the controlled load.
SCR Static switch (CB21544E)
- Details
- Written by: Newton C. Braga
Found in a Motorola manual from the 1960s, this circuit shows how to use a transistor in a static switch with SCR. Q2 and Q3 must be according to the controlled load.
