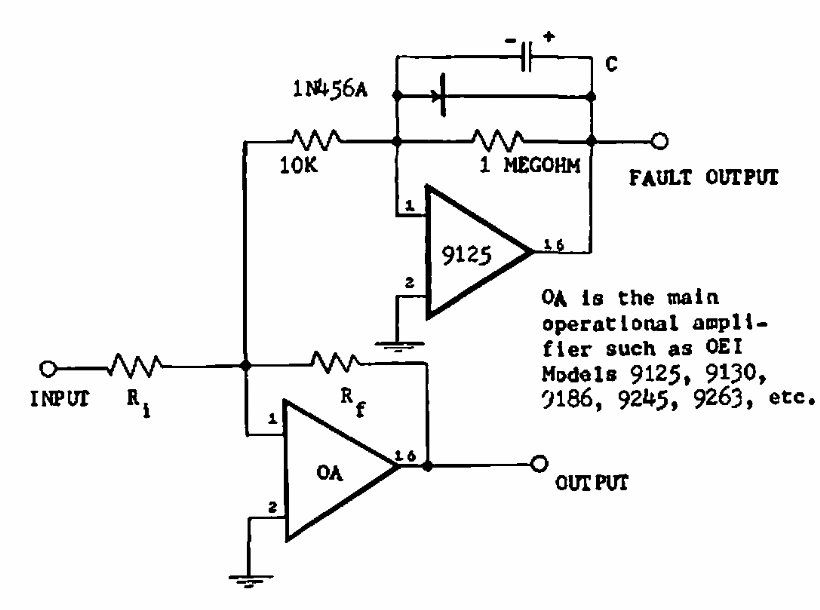

Fault indicator (CB21396E)

Details
Written by: Newton C. Braga



This circuit was found in old American documentation. The operational amplifiers are from the period, but modern equivalents can be used.
