pH meter (CB21196E)

Details
Written by: Newton C. Braga

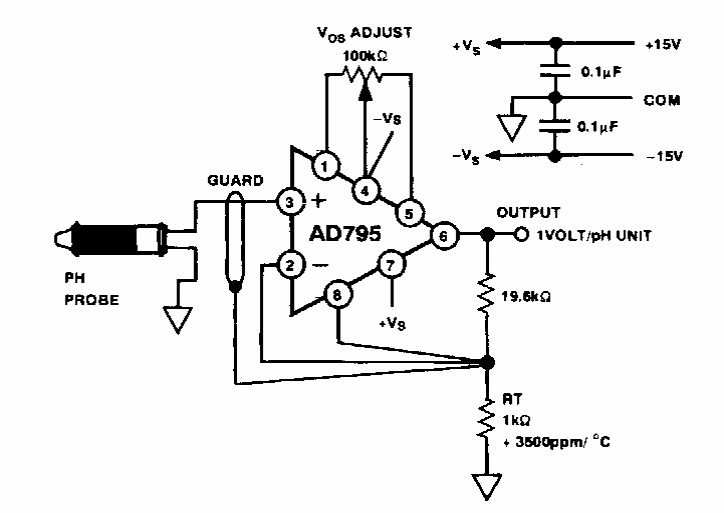

This circuit was found in documentation from Analog Devices. The circuit is based on an AD795 and a commercial pH probe.




| Clique na imagem para ampliar |
