Optofiac control (CB21568E)

Details
Written by: Newton C. Braga

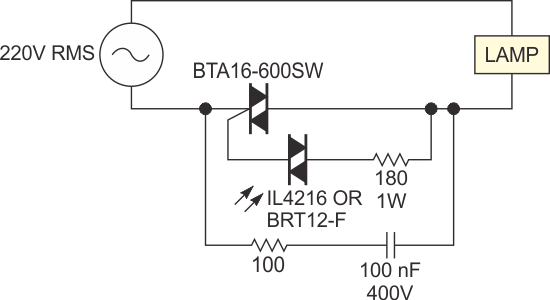

This circuit shows how to use a Vishay IL4216 or IL12-F optodiac to control a triac in a common control. The circuit can operate with devices for the 110 V network.
