Bath control (CB21373E)

Details
Written by: Newton C. Braga

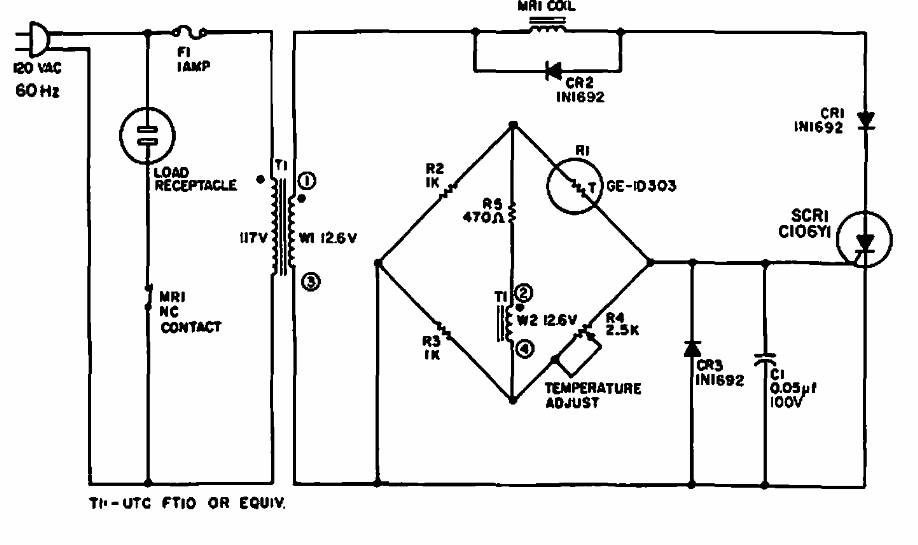

This hydromassage circuit was found in a 1967 General Electric publication. The SCR is according to the power of the heating element.




| Clique na imagem para ampliar |
