Piezoelectric Driver 1 (CB21153E)

Details
Written by: Newton C. Braga

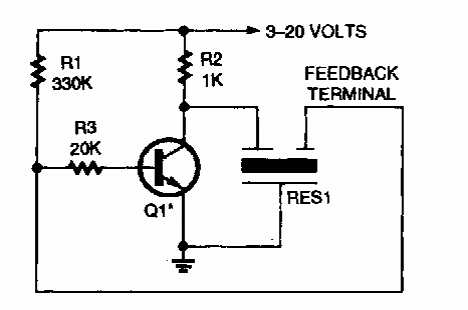

In the figure we have a circuit to excite a piezoelectric capsule taking advantage of its resonant frequency. The circuit is from a Poptronics and the transistor is general purpose.
