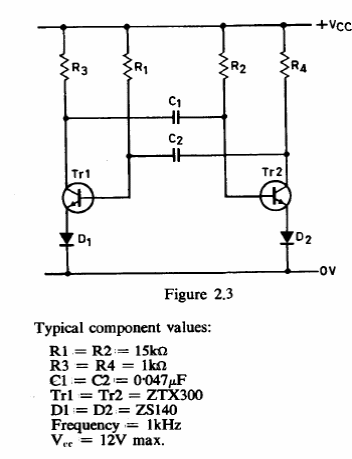

Found in a 1974 Ferranti manual, this circuit uses diodes to limit the voltage on the transistors. The frequency is approximately 1 kHz.
Astable with voltage limitation (CB21826E)
- Details
- Written by: Newton C. Braga
Found in a 1974 Ferranti manual, this circuit uses diodes to limit the voltage on the transistors. The frequency is approximately 1 kHz.
