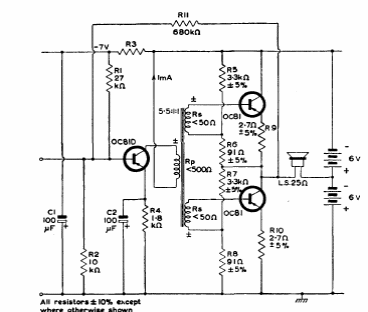

500 mW push-pull amplifier (CB21795E)

Details
Written by: Newton C. Braga



This circuit was found in a Mullard transistor manual from 1960. Note the symmetrical power supply. Transistors are germanium types from the time.
