5V Reference (CB21527E)

Details
Written by: Newton C. Braga

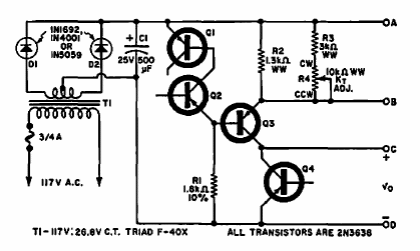

This voltage reference was found in a 1967 Electronics World. The transistors are from the time, some of them being purposely wired with one of the disconnected terminals.
