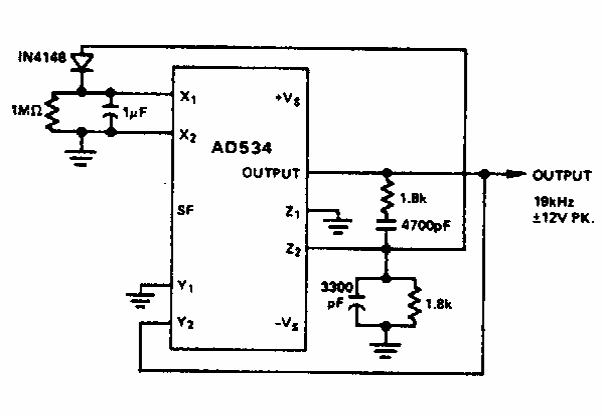

Stabilized Wien Bridge Oscillator (CB21128E)

Details
Written by: Newton C. Braga



This Wien bridge oscillator was found in an Analog Devices documentation from the 90's. The integrated circuit used is uncommon nowadays.
