Analog Divider Multiplier (CB21035E)

Details
Written by: Newton C. Braga

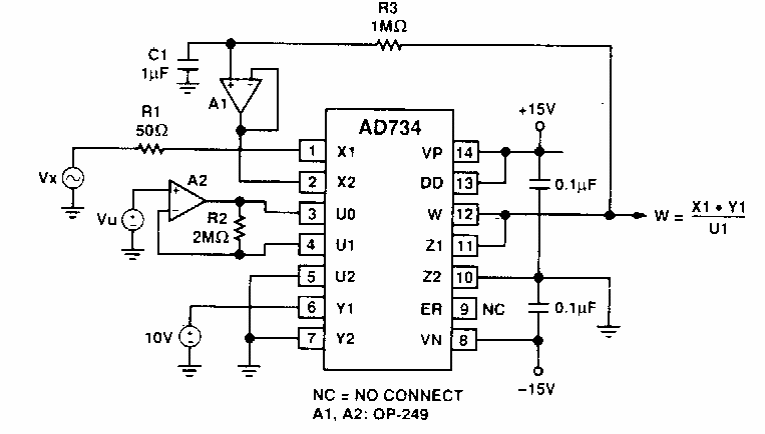

This circuit was found in an Analog Devices publication from the 1990s. The circuit performs input voltage multiplication and division operations.
