Phone pickup (CB21642E)

Details
Written by: Newton C. Braga

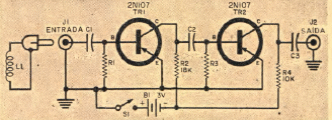

This amplifier circuit applies its signal to an ordinary audio amplifier to pick up signals from a telephone through a coil. Transistors are general purpose. The circuit is from an October 1968 Popular Electronics.
