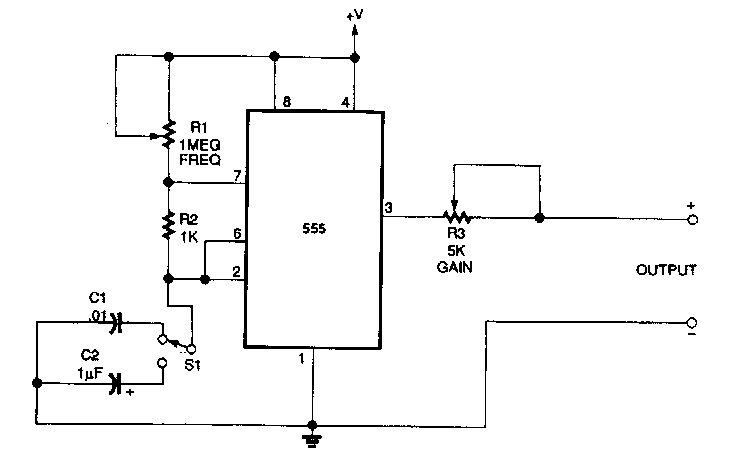

Found in Electronics Now, this circuit generates signals for testing like a signal injector. The frequency will be between 20 Hz and 10 kHz with the indicated components.
| Clique na imagem para ampliar |
555 testing generator (CB21341E)
- Details
- Written by: Newton C. Braga
