Sound Intensity Meter (CB21363E)
- Details
- Written by: Newton C. Braga

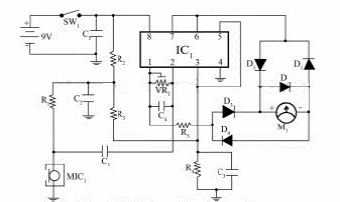

This circuit was obtained from an English documentation. The gauge is analog, but the common multimeter current scale can be used. The integrated circuit is the TLC272.
