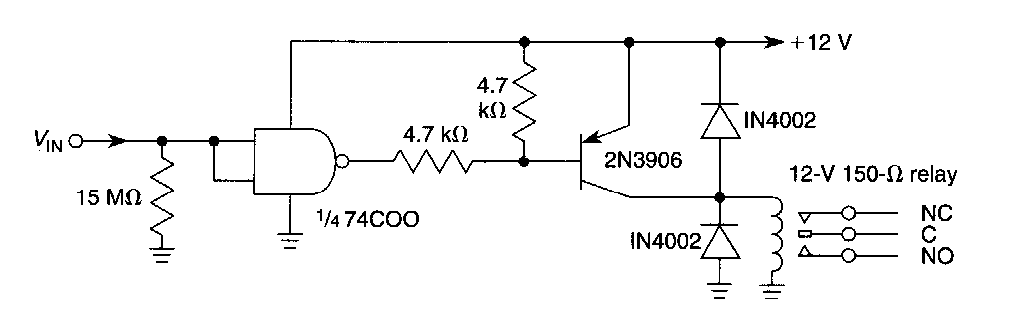

We found this CMOS circuit for excitation of a relay in an old documentation. The transistor is a general-purpose high voltage as used in the power supply.
| Clique na imagem para ampliar |
High Impedance Relay Driver (CB21221E)
- Details
- Written by: Newton C. Braga
