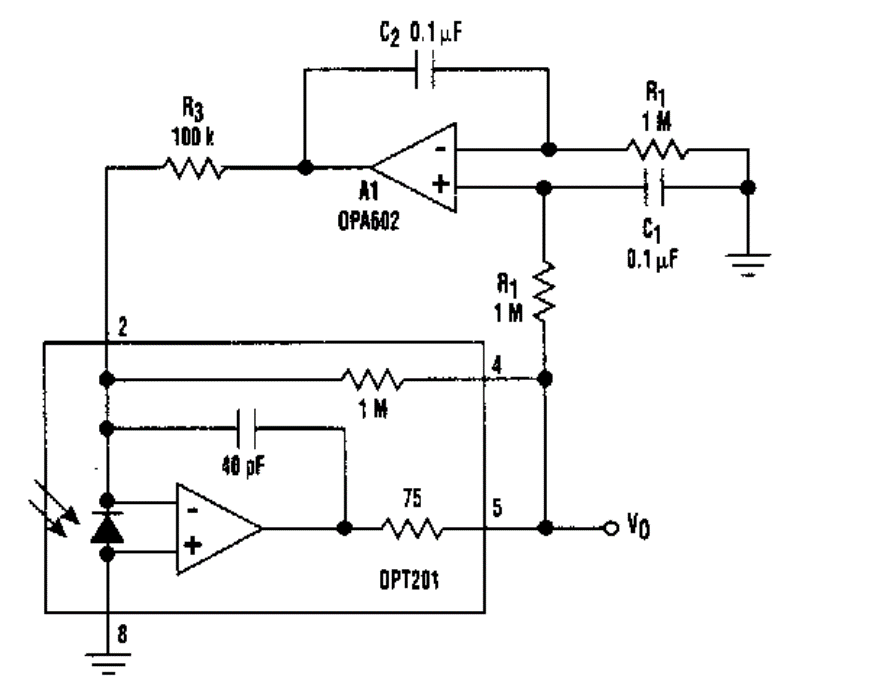

Photodiode Amplifier (CB21016E)

This circuit is from an Electronic Design from the 90's. The circuit has excellent gain and must be powered by a symmetrical power source.
