Regulated power supply (CB21698E)

Details
Written by: Newton C. Braga

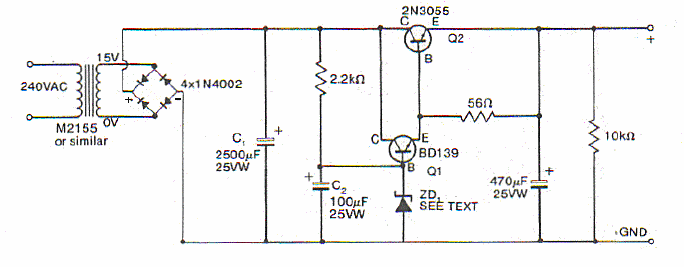

The transformer in this power supply can have a secondary winding from 1 to 15 A of current. Voltage is given by the zener diode. Transistor 2N3055 must be mounted on a good heat radiator.




| Clique na imagem para ampliar |
