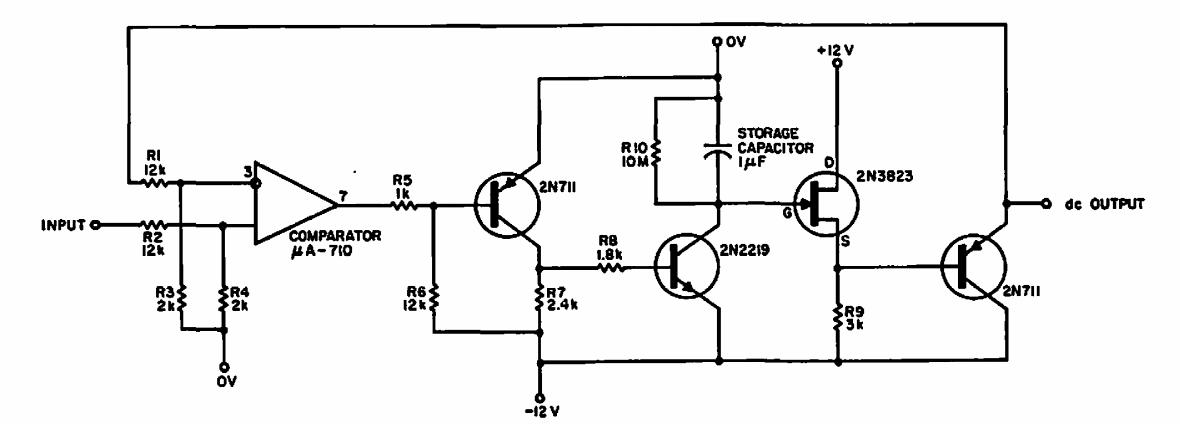

Found in a 1967 Electronic Design, this circuit can detect pulses as narrow as 0.2 us. Active components can be replaced with modern equivalents.
| Clique na imagem para ampliar |
Narrow Pulse Sensor (CB21508E)
- Details
- Written by: Newton C. Braga
Found in a 1967 Electronic Design, this circuit can detect pulses as narrow as 0.2 us. Active components can be replaced with modern equivalents.
