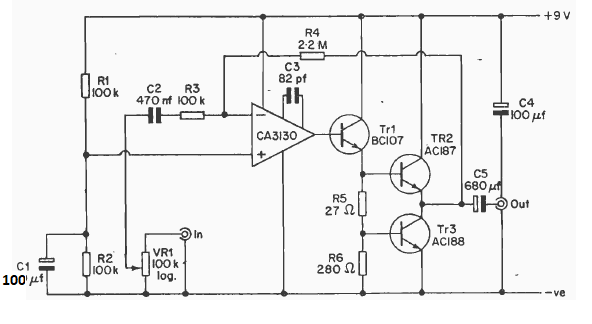

This amplifier with the AC187 and AC188 pair and the CA3130 integrated circuit was found in an English publication from 1977. The circuit does not need a symmetrical power supply.
Audio amplifier (CB21977E)
- Details
- Written by: Newton C. Braga
This amplifier with the AC187 and AC188 pair and the CA3130 integrated circuit was found in an English publication from 1977. The circuit does not need a symmetrical power supply.
