SCR Slave (CB21366E)

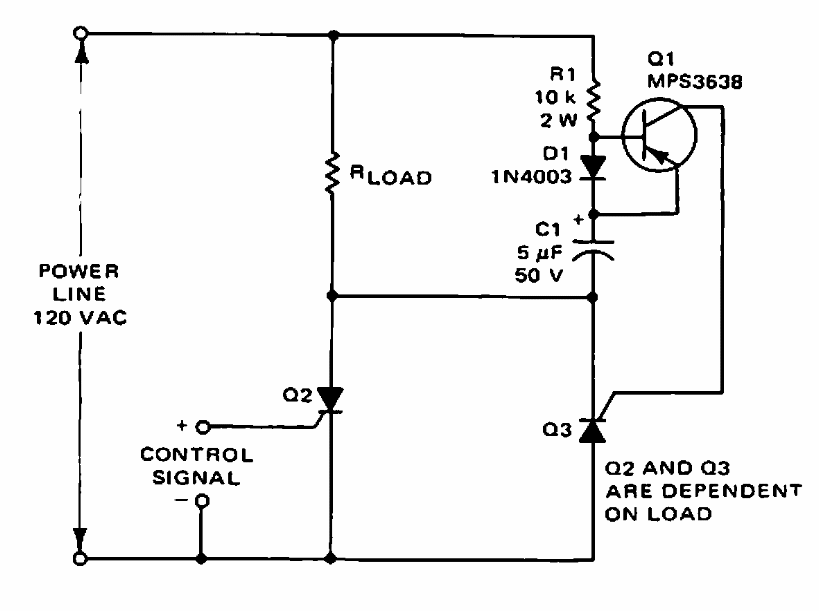

Found in a 1968 GE documentation, this circuit is intended to drive an SCR from a control signal.

| Clique na imagem para ampliar |

TDA2006 8W Single Source Amplifier (CB15823E)
This amplifier must be supplied with a voltage of 24 V and the resting current is of the order of 4...
Photo multiplier tube source (CB8121E)
This circuit is from a magazine 73 for radio amateurs of the 90s. The circuit generates the high...
Quadrature Oscillator (CB19016E)
This circuit generates quadrature signals in frequency that depend on the 18 pF capacitors. These...
