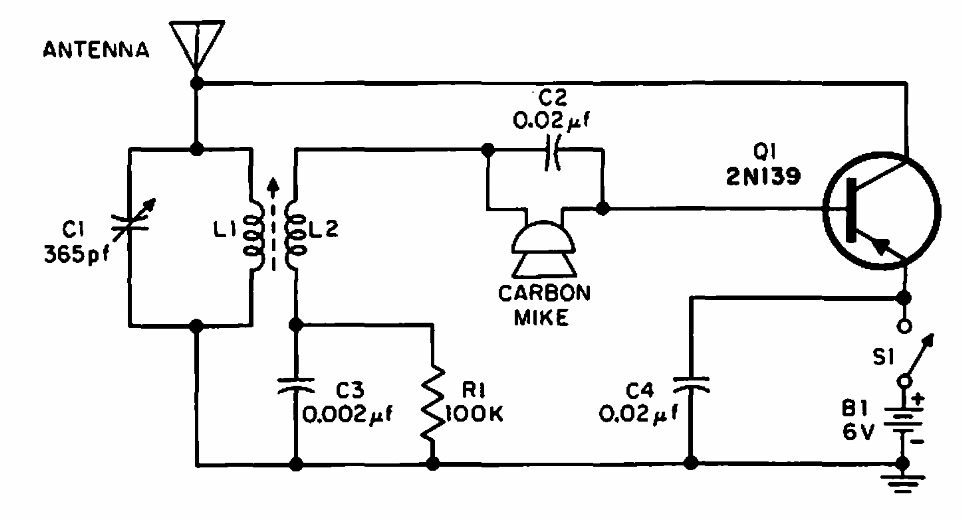

Found in the 1965 Radio Shack documentation, this short-range AM circuit can be built with transistors like the BC558. The L1 loop is formed by 80 turns of wire 28 in a ferrite rod with 15 turns for L2 on the same core.
