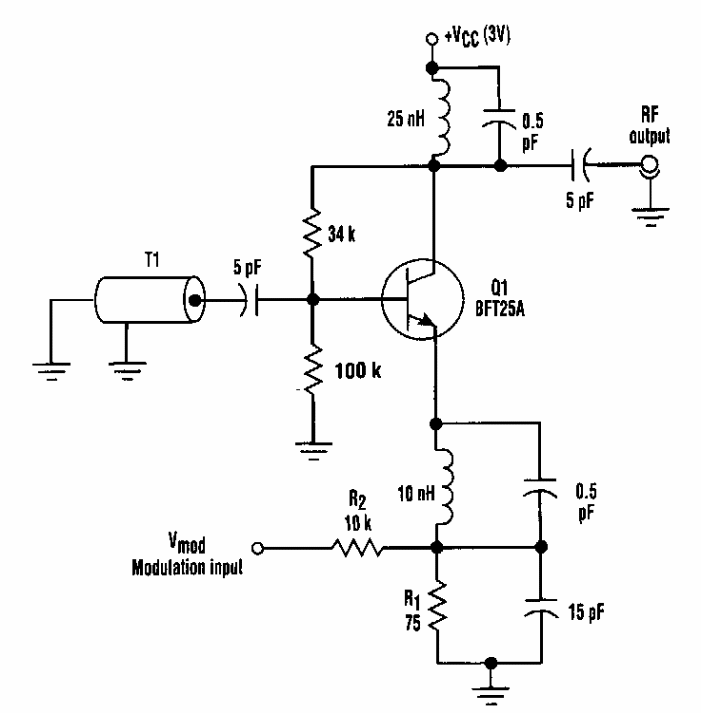

This varicap-less modulator circuit was found in an Electronic Design from the 90's. The circuit modulates the signal generated by the circuit in frequency. It is intended for FM and VHF applications.
| Clique na imagem para ampliar |
Modulator without varicap (CB21085E)
