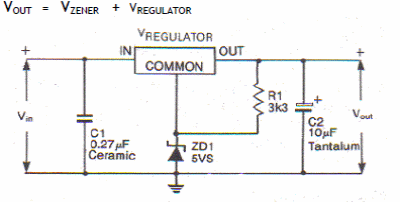

In the figure we have the way to increase the voltage of a 78xx by adding a zener diode. The output voltage will be the regulator voltage plus the zener diode voltage.
78xx power supply with increased voltage (CB21684E)
