CB21304E TV Transmitter (CB21304E)

Details
Written by: Newton C. Braga

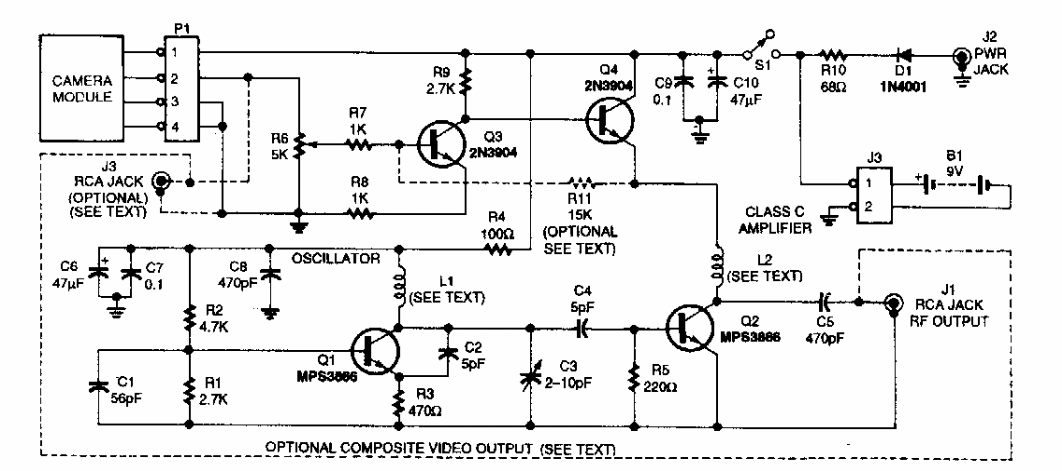

This small analog TV transmitter was found in an Electronics Now from the 90s. The range is around 20 meters, and the coils are according to the channel on which you want to receive the signal.
