VCO (CB21488E)

Details
Written by: Newton C. Braga

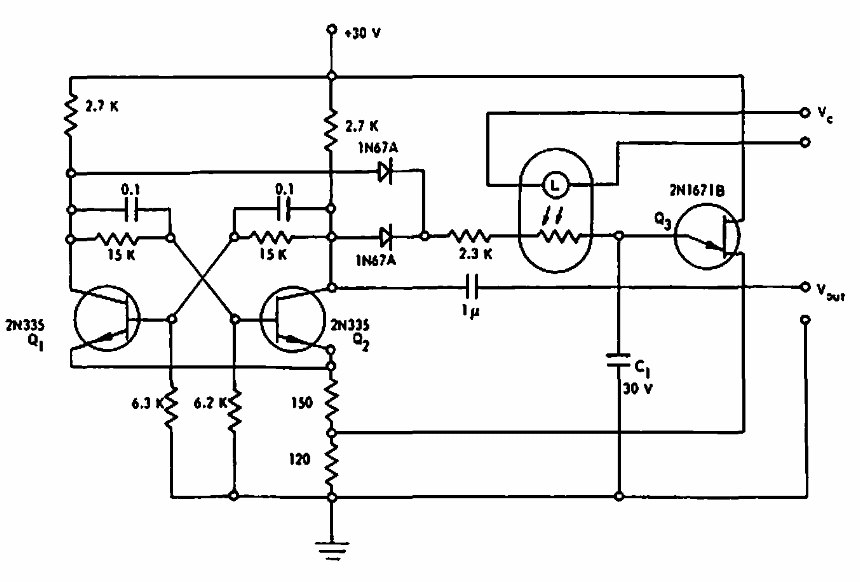

This circuit was found in a 1967 Raytheon manual. The transistors are from the time. Equivalent modern transistors can be tried out.




| Clique na imagem para ampliar |
