Surge voltage generator (CB21465E)

Details
Written by: Newton C. Braga

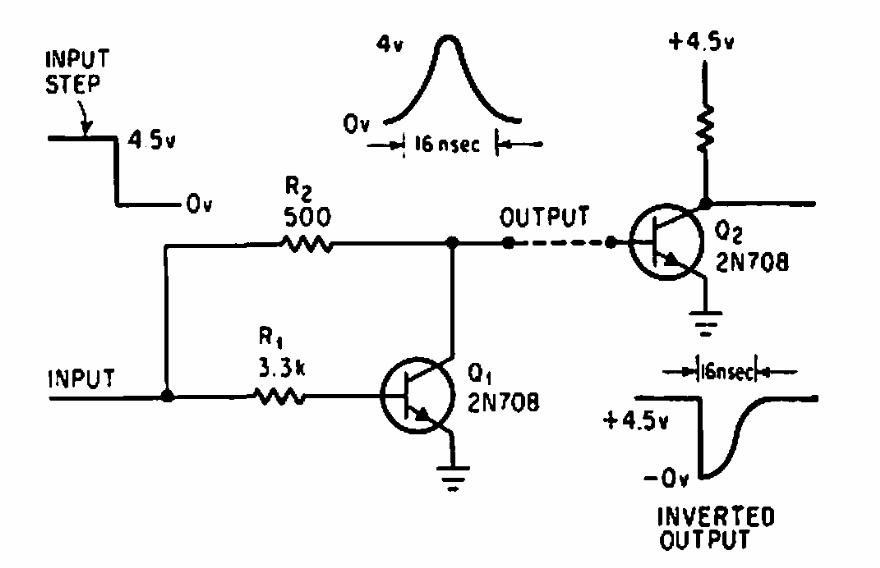

Found in a 1967 US magazine this circuit generates positive and negative voltage pulses from a negative transition of the input signal.




| Clique na imagem para ampliar |
