Crystal Radio (CB21685E)

Details
Written by: Newton C. Braga

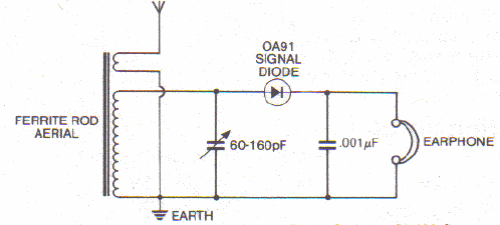

This crystal or galena radio circuit uses a high impedance magnetic earphone. The coil can have 80 + 20 turns of wire 28 on a ferrite rod.
