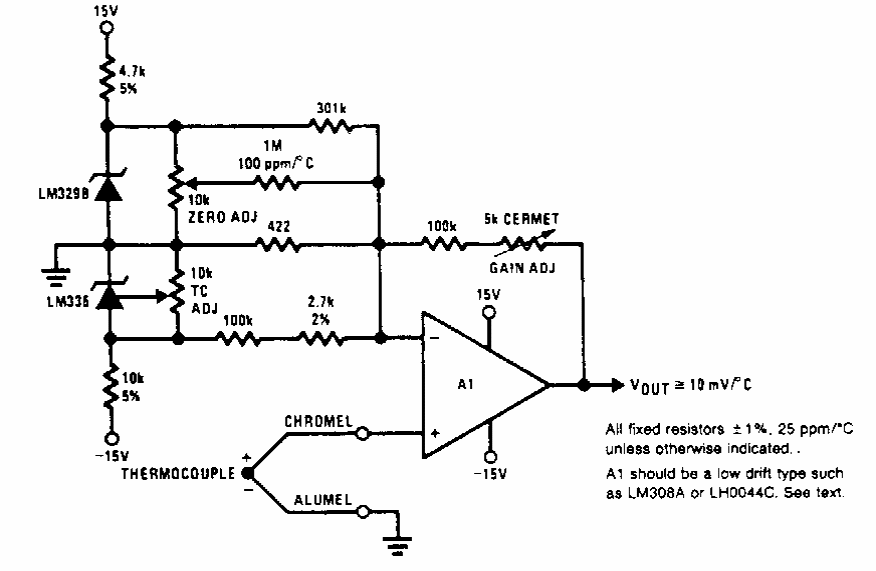

Centigrade thermometer (CB21279E)

Details
Written by: Newton C. Braga



This circuit was found in National Semiconductor documentation from the 1990s. It has cold junction compensation.
