Visual metronome (CB21062E)

Details
Written by: Newton C. Braga

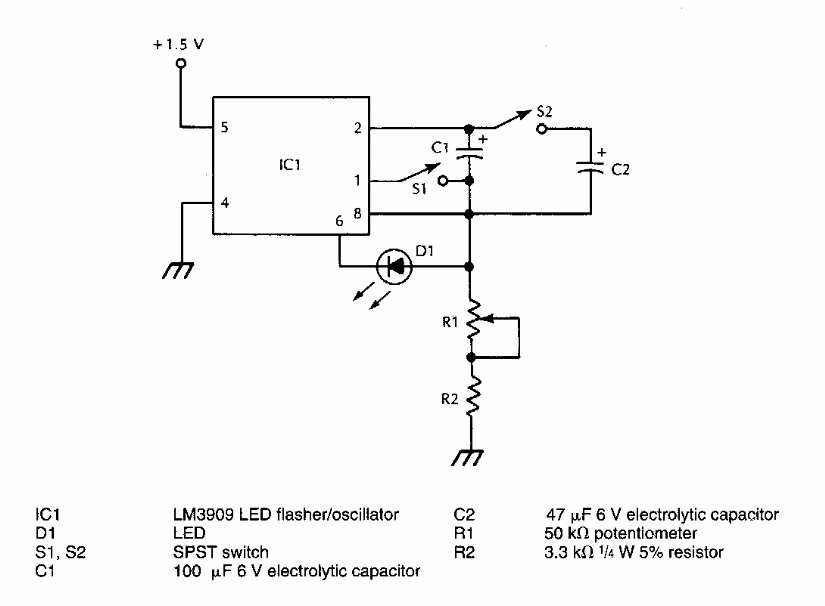

Based on the well-known LM3909, this LED pulser circuit was found in American documentation from the 90's. The power supply is only 1.5 V.




| Clique na imagem para ampliar |
