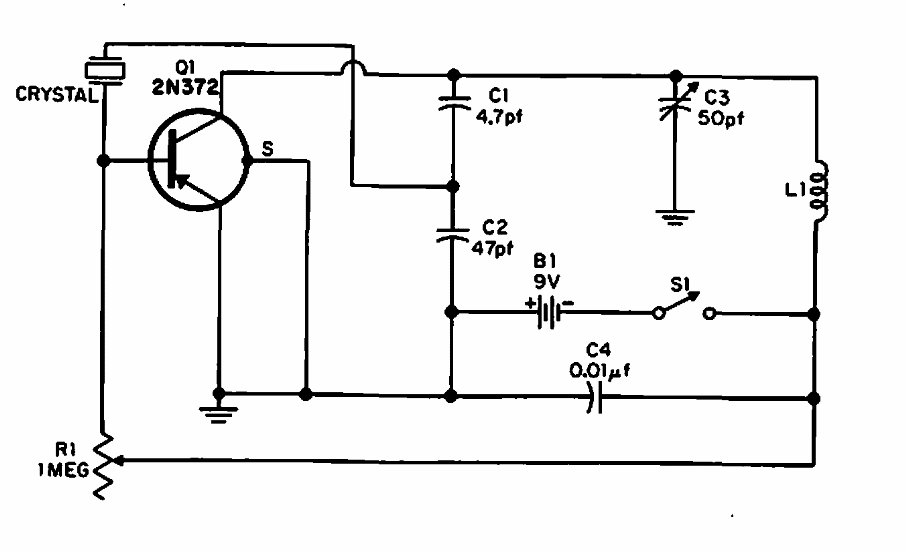

This small locator transmitter was found in old Radio Shack documentation. The transistor could be a BC548. The crystal determines the operating frequency, which can typically be between 5 and 20 MHz.
| Clique na imagem para ampliar |
Locator transmitter (CB21444E)
- Details
- Written by: Newton C. Braga
