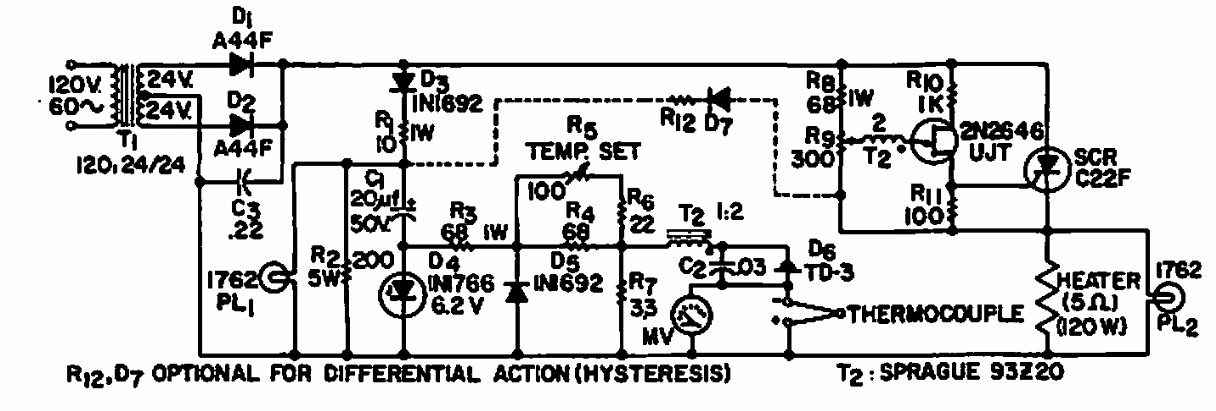

This circuit was found in an old GE manual. It uses a thermocouple as a sensor. The SCR must be in accordance with the power of the controlled load.
| Clique na imagem para ampliar |
Heater Control (CB21369E)
- Details
- Written by: Newton C. Braga
This circuit was found in an old GE manual. It uses a thermocouple as a sensor. The SCR must be in accordance with the power of the controlled load.
