FET electroscope (CB21042E)

Details
Written by: Newton C. Braga

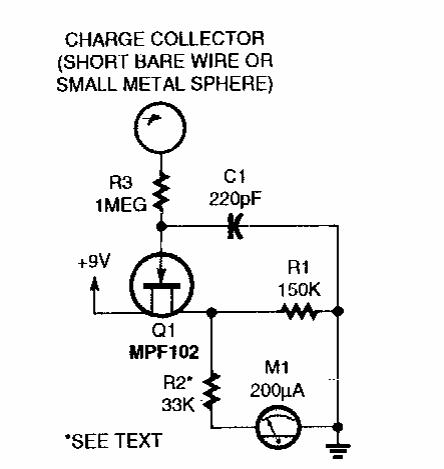

This is a traditional version of electroscope with FET. We found it at Popular Electronics. The indicator is a microammeter, but the smaller current scale of a multimeter can be used.
