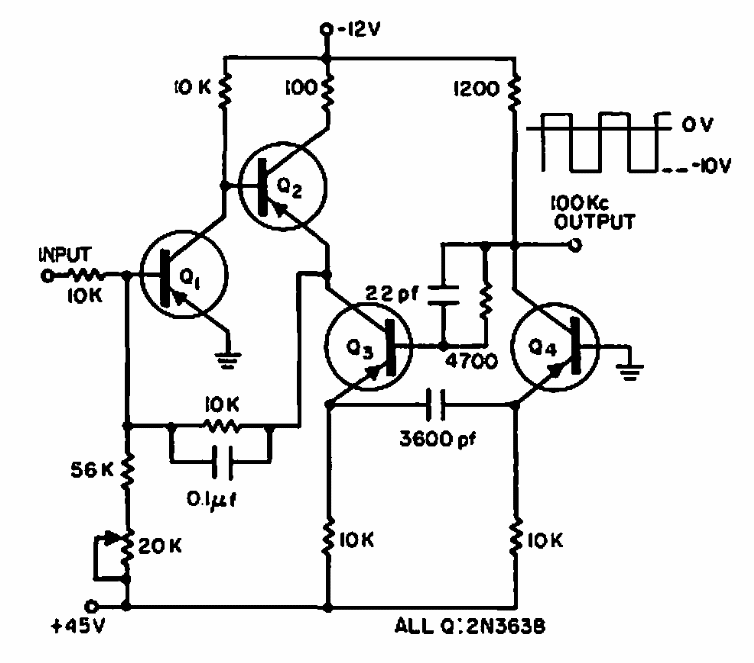

100 kHz VCO (CB21489E)

Details
Written by: Newton C. Braga



This voltage-controlled oscillator was found in a 1965 Electronic Design. Transistors are from the time, and modern equivalents can be tested.




| Clique na imagem para ampliar |
