High Impedance Trigger (CB21466E)

Details
Written by: Newton C. Braga

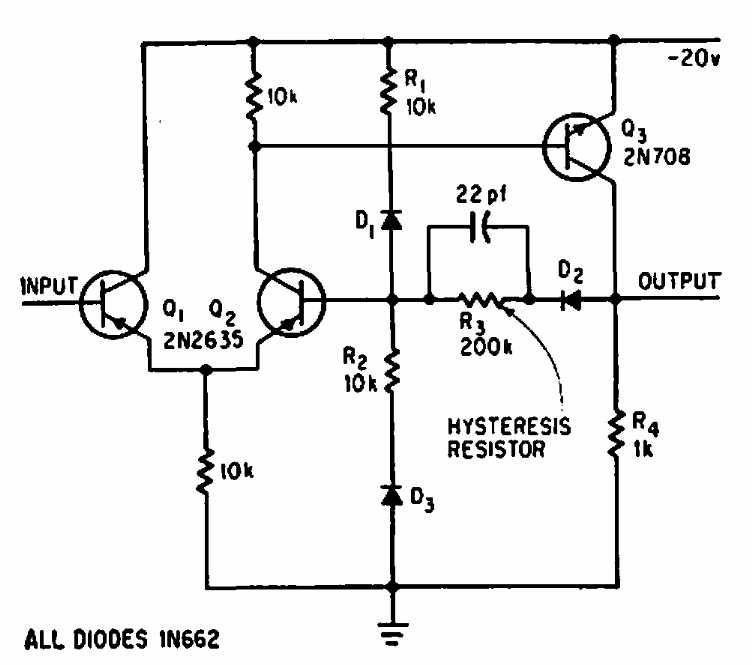

Found in a 1967 American electronics magazine, this circuit has an input impedance of 2000 ohms. The circuit can be built with modern equivalent transistors.
