Timed Relay (CB21866E)

Details
Written by: Newton C. Braga

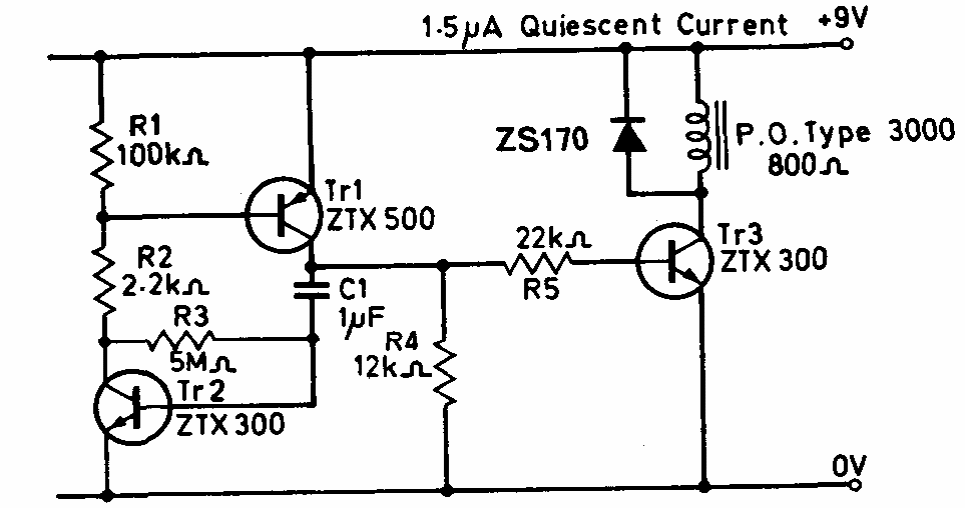

We found this circuit in Ferranti's 1974 transistor manual. The components are from the period. Note the relay type used.
